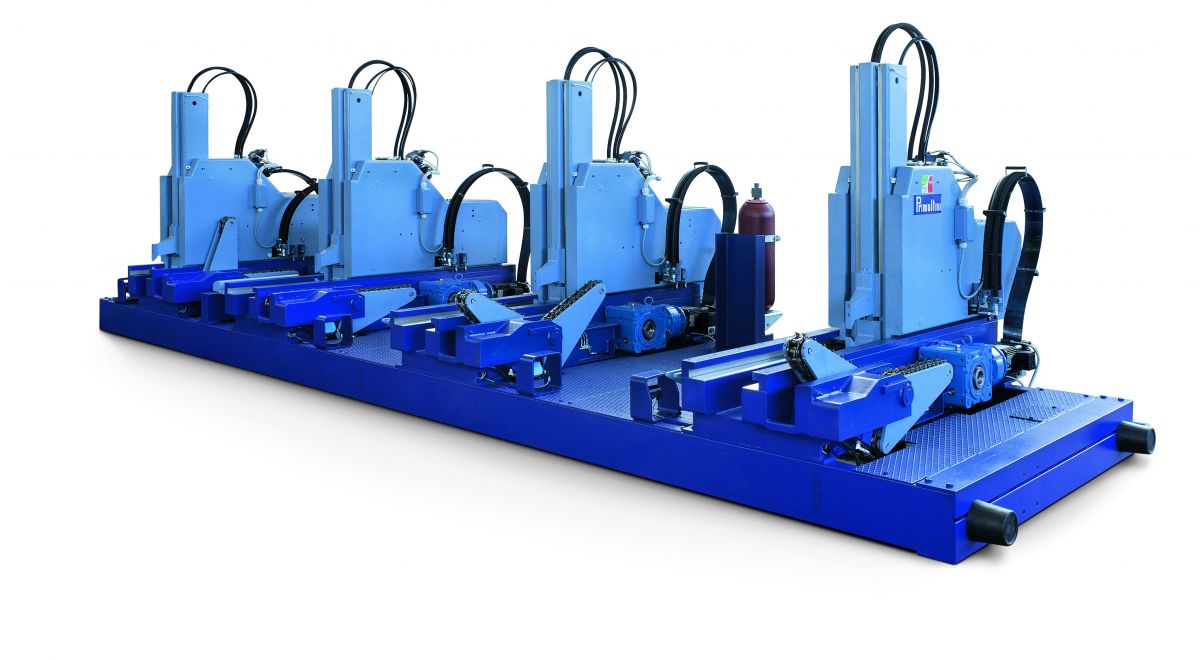

Log carriage model CFM

EQUIPMENT FOR SAWMILLS

  • Log clamping through hydraulic cylinders having 2 selectable closing pressures
  • Headblocks slide on flat blocks, which are built with interchangeable wear components
  • Automatic positioning of headblocks by means of a programmable electronic positioner
  • Log turning device with independent arms mounted on each headblock: hydraulic lifting with arm inclination up to 90°, rotation through hydraulic motor
  • Centralized and completely automized lubrication.
  • Hydrostatic feed, with rope drive and foot control lever. A remarkable acceleration is achieved thanks to the headrig main motor power: this also ensures the highest production capacity and a worthwhile energy saving

Log carriage

FIXED HEADBLOCKS

  • Synchronized headblocks displacement through a Brushless motor, with high-precision rack and pinion and slack recovery

OPTIONS

  • Slab turning arms
  • Beam tilting arms
  • Double arm hydraulic log turning device

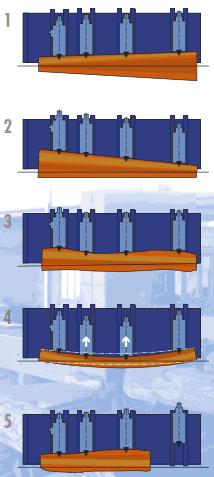

VERSATILIT Y AND ACCURACY

1 Automatic log alignment to its axis
2 Automatic log alignment to its edge, with programming of the open face (width of first board)
3 Secure clamping of quite irregular logs by all headblocks
4 Make use of central headblocks to straighten the slabs or the small bent logs
5 Headblocks unused can be excluded
